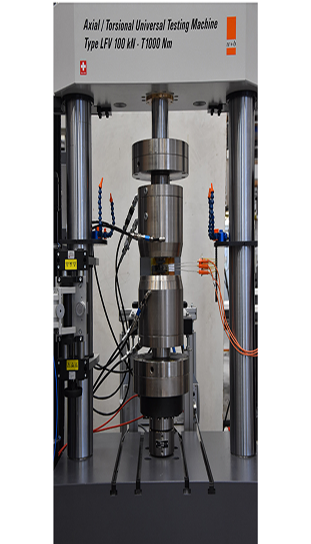

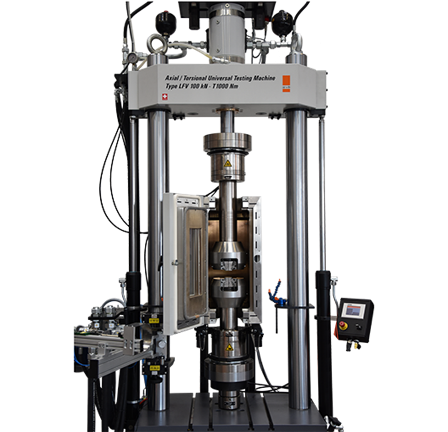

The Axial/Torsional Fatigue Machine LFV-T Series is an advanced system designed for multiaxial fatigue testing on various materials. Here’s a summary of its key features:

Dynamic Capabilities: Maximum axial dynamic

Load: 112 kN at 280-bars.Piston stroke: 450 mm (+/-225 mm).

Maximum torsional dynamic moment: +/- 1000 Nm.

Torsion angle: +/-90°.

Rigidity and Precision: Torsional rigidity of the load frame: up to 1400 kN/r at a height of 1460 mm.

Axial rigidity: 1350 kN at 1460 mm height.

Applications: Multiaxial fatigue testing on polymer and metal samples. Combined tension and torsion tests. Static and dynamic tests in a temperature range of -70 °C to +350 °C.

Design and Accessories: Equipped with high-temperature hydraulic jaws for flat and round samples. Integrated plate with a slotted table for securing components and assemblies. Includes three-point and four-point bending devices, as well as compression plates Hydraulic System: Operating pressure: 280 bars. Reservoir capacity: 240 liters with a constant flow rate of 60 liters/min.

This machine is ideal for research laboratories and industries requiring precise and reliable testing of materials under complex stress conditions.
